More fun with less effort. The ability to go places you never thought. Carving lines through trees your buddies have second thoughts about. It’s all yours when you reach for a 2013 Summit snowmobile. Choose the E-TEC 800R engine and get the new REV-XM platform – the most specialized mountain sled ever.
Key Features
- Platform
-
REV-XP
REV-XM
- Engine
-
Rotax E-TEC 600 H.O.
Rotax E-TEC 800R
- Color
-
Black
Orange / Black
- Front Suspension
- Dual A-arms
- Front Shocks
- HPG
- Center Shock
- HPG
- Rear Suspension
- SC-5M-2
- Rear Arm Shock
- HPG
Package Highlights
ROTAX E-TEC 800R
- REV-XM platform
- tMotion rear suspension
- Warm glove box with 4 L/1 US gal of storage
- Non-ported 16 x 146 / 154 / 163 x 2.5-inch PowderMax 2 track with FlexEdge
- Pilot DS 2 skis
- Lightweight, low profile REV-XM seat with 3 L / 0.8 US gal of storage
- Ergonomic, multi-function digital gauge display with temperature gauge
- Running boards with large openings
- 2 rear wheels track system
- Stiffer grab handle on handlebar
- New handlebar controls configuration
- Lightweight chromoly front suspension lower A-arm
- Adjustable, narrow ski stance
- Brembo racing brake with
braided stainless-steel brake line
ROTAX E-TEC 600 H.O.
- REV-XP platform
- Temperature gauge
- Non-ported 16 x 146 / 154 x 2.25-inch PowderMax track
- Lightweight chromoly front suspension lower A-arm
- Pilot DS skis
- Adjustable, narrow ski stance
- Brembo racing brake with
braided stainless-steel brake line
- REV-XP X narrow seat with
5 L / 1.3 US gal of storage
- RER electronic reverse
- Multi-function digital gauge with display

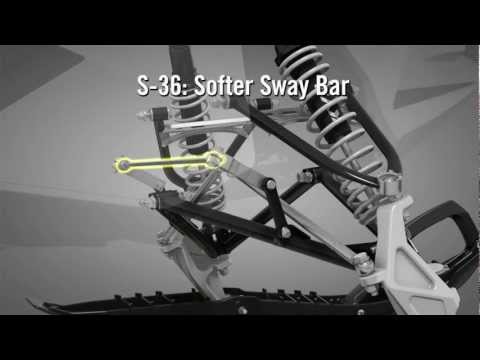

- S-36 handling package
Specifications
Engine |
| Engine | Rotax E-TEC 600 H.O.
|
Rotax E-TEC 800R
|
Dimensions |
| Official dry weight | 206 kg / 454 lb (146 in)
207 kg / 456 lb (154 in)
|
208 kg / 459 lb (146 in)
210 kg / 464 lb (154 in)
213 kg / 469 lb (163 in)
|
| Ski stance | 907 mm or 950 mm / 35.7 or 37.4 in
|
907 mm or 950 mm / 35.7 or 37.4 in
|
| Track nominal width | 406 mm / 16 in
|
406 mm / 16 in
|
| Track nominal length | 3705 mm / 146 in
3923 mm / 154 in
|
3705 mm / 146 in
3923 mm / 154 in
4141 mm / 163 in
|
| Track profile height | 57.2 mm / 2.25 in PowderMax
|
63.5 mm / 2.5 in PowderMax 2 (FlexEdge)
|
Powertrain |
| Drive clutch type | TRA III
|
TRA VII
|
| Driven clutch type | QRS
|
QRS
|
| Brake system | Brembo racing brake with braided stainless-steel brake line
|
Brembo racing brake with braided stainless-steel brake line
|
Suspension |
| Front Suspension | Dual A-arms
|
Dual A-arms
|
| Front Shocks | HPG
|
HPG
|
| Center Shock | HPG
|
HPG
|
| Rear Suspension | SC-5M-2
|
tMotion
|
| Rear Arm Shock | HPG
|
HPG
|
Features |
| Platform | REV-XP
|
REV-XM
|
| Skis | Pilot DS
|
Pilot DS 2
|
